Competition Clutch 240SX / Silvia / Pulsar SR20DET 5 Gang Kupplung

Neu

  • 60442-2100 Stage 2 - Sprung Steelback Brass Plus 450nm
  • 60442-2600 Stage 3 - Sprung Segmented Ceramic 677nm
  • 60442-1620 Stage 4 - 6 Pad Sprung Ceramic 745nm
  • 2-760T-STU ULTRA LIGHTWEIGHT FLYWHEEL 5 speed - 4.66kgs
  • 2-635-ST LIGHTWEIGHT FLYWHEEL 6 speed only - 7.12kgs
  • 4-60442-C TWIN DISC 5-speed - 9.23kgs 881nm
  • Das sind standart bilder, nicht fahrzeugspezifisch

Mehr Infos

Lieferbar

Sammeln Sie mit dem Kauf dieses Artikels Sie bis zu 115 Treuepunkte. Ihr Warenkorb hat insgesamt 115 Punkte die in einen Gutschein im Wert von umgerechnet werden können 11,50€.


823,37€ inkl. MwSt.

Auf meine Wunschliste

Mehr Infos

Products

 Stage 1   Gravity Series 2400 Clutch kit
The economical solution for moderately modified cars or simply aggressive individuals with stock power.  Offers up to 40-50% increase in torque capacity and  maintains stock pedal feel.  300 mile break-in recommended with this set-up.

DO NOT use with added forced induction such as turbo, supercharger, or NOS systems.

The 2400 Series kit includes a Competition Clutch pressure plate, a 6 pad Carbonetic high-torque disc assembly, all applicable bearings and the appropriate alignment tool. (some  kits may not be supplied with all pieces. 6-pad Carbonetic disc not used in all applications. Please contact Competition Clutch before ordering).



 Stage 2  Street Series 2100 Clutch Kit
This assembly provides up to 80% increase in torque capacity and is properly suited for aggressive street use and moderate track use. The Brass Plus material with its alloy backing matched to a performance pressure plate will provide smooth engagement and extended life. 500 mile break-in highly recommended with this set-up. 300-mile break-in REQUIRED with this set-up. (Some kits may not be supplied with all pieces. Please verify with Competition Clutch before ordering).

The 2100 Series kit includes a performance pressure plate, a high torque sprung disc with anti-burst steel backed Brass Plus facings, all applicable bearings, and the appropriate alignment.

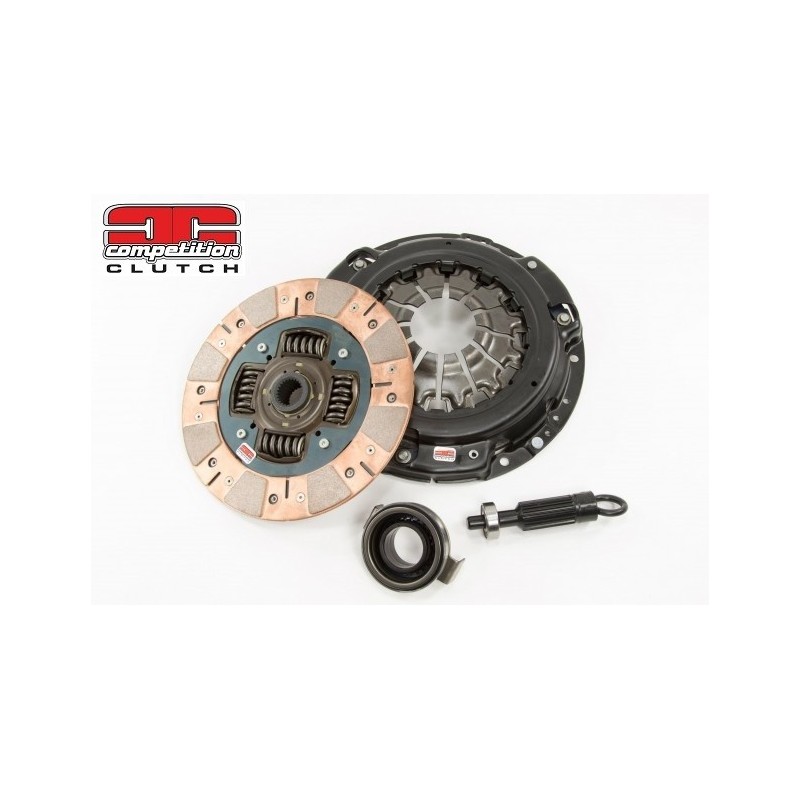

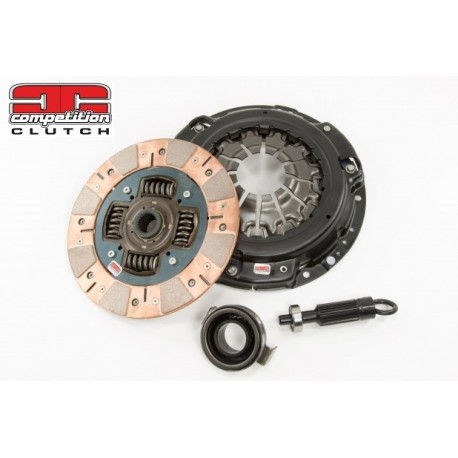

 Stage 3  Street/Track Series 2600 Clutch Kit
This segmented Ceramic material with a performance pressure plate will provide the ultimate in street and strip combinations. This assembly is suited for up to 150% increase in torque capacity. Provides quick but smooth engagement and extended life. 300-mile break-in recommended with this set-up.

The 2600 Series kit includes a performance pressure plate, a high torque sprung disc with segmented Ceramic facings, all applicable bearings, and the appropriate alignment tool.

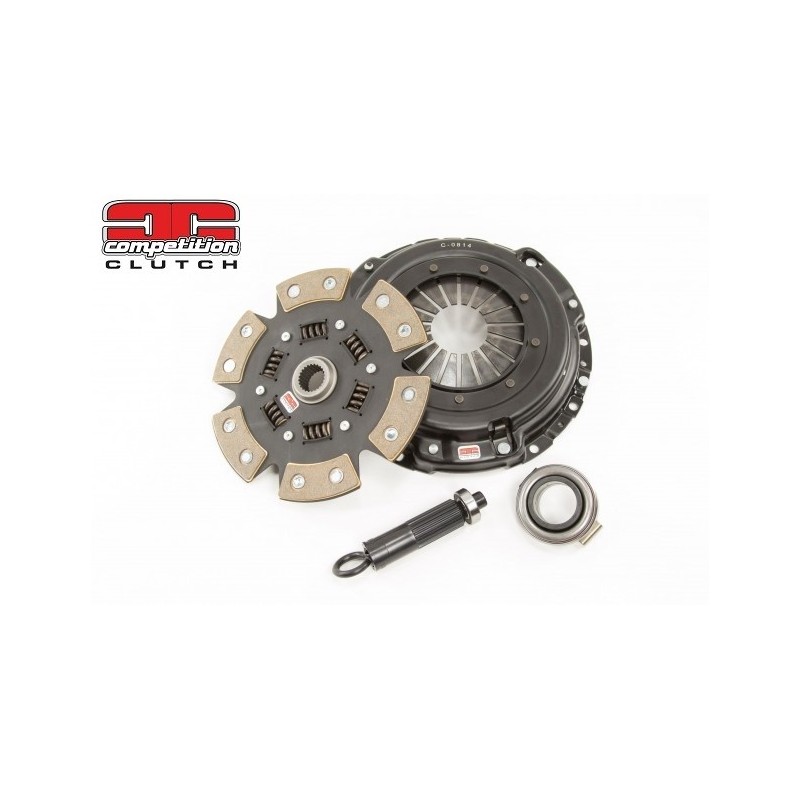

 Stage 4 Sprung  Track Series 1620 Clutch Kit
This assembly, available with a six puck sprung plate is good for penetrating engagement with higher horsepower applications. This disc complimented by a performance pressure plate provides up to 250% increase in torque capacity. 300-mile break-in recommended with this set-up.

The 1620 Series kit includes a performance pressure plate, a six-puck high torque sprung disc with Ceramic buttons, all applicable bearings, and the appropriate alignment tool.



 Stage 4 Rigid - Track Series 0620 Clutch Kit
This assembly, available with a six puck rigid plate is good for penetrating engagement with higher horsepower applications. This disc complimented by a performance pressure plate provides up to 250% increase in torque capacity. 300-mile break-in recommended with this set-up.

The 0620 Series kit includes a performance pressure plate, a six-puck high torque rigid disc with Ceramic buttons, all applicable bearings, and the appropriate alignment tool.



 Stage 5 Sprung - Track Series 1420 Clutch Kit
This assembly, available with a double spring, six-rivet carriage is good for ease of gear transition with higher horsepower. This disc complimented by a performance pressure plate provides up to 300% increase in torque capacity. 300-mile break-in recommended with this set-up.

The 1420 Series kit includes a performance pressure plate, a four puck high torque sprung disc Ceramic buttons, all applicable bearings, and the appropriate alignment tool.



  Stage 5 Rigid - Track Series 0420 Clutch Kit
This assembly, available with a rigid plate is good for penetrating engagement with higher horsepower applications. This disc complimented by a performance pressure plate provides up to 300% increase in torque capacity. 300-mile break-in recommended with this set-up.

The 0420 Series kit includes a performance pressure plate, a four-puck high torque rigid disc with Ceramic buttons, all applicable bearings, and the appropriate alignment tool.




Super Single
The super single was developed for cars not quite ready for a twin but needing something more than the conventional Stage 4. The super single mirrors a twin disc in the fact that they both are a 7.25" set up and have a 4140 forged steel flywheel. Unlike the twin, the super single only uses one disc and tips the scales around 17 to 20 lbs depending on the application.

The super single is a must-have piece for all-motor/nitrous cars running up to 350whp. Currently available for select applications.

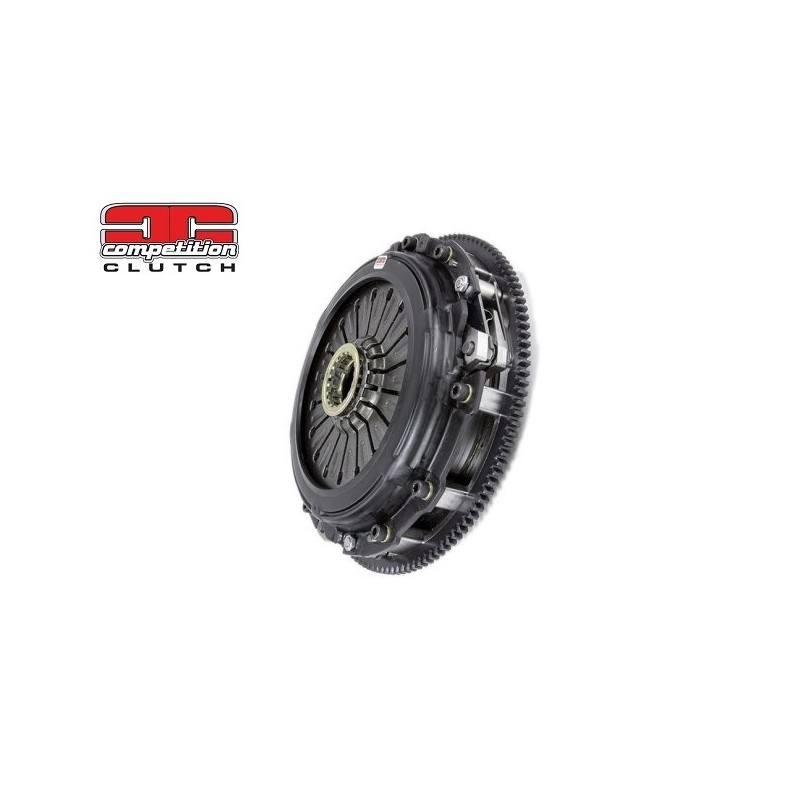

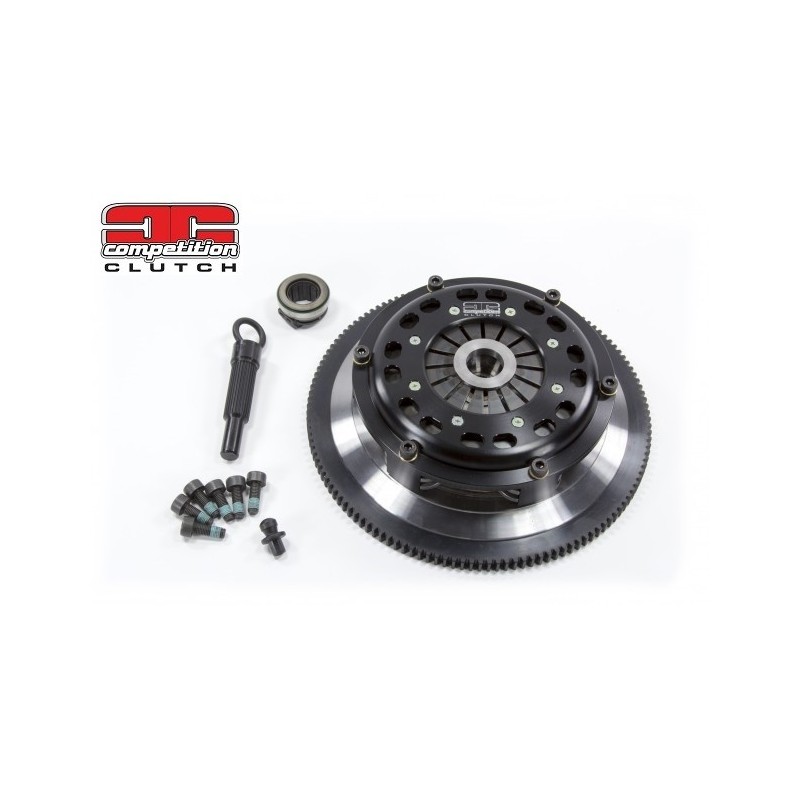

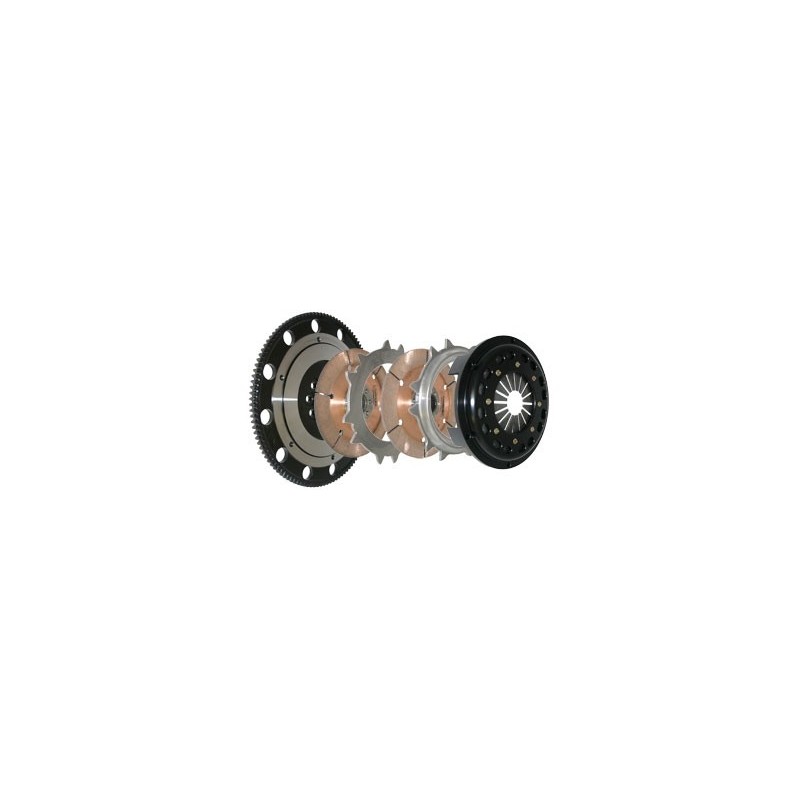

 Multiplate
The CCI twin disc provides the most economical racing clutch for the active sport compact enthusiast. This ceramic twin disc comes with a 4140 forged steel flywheel and a 6061 T6aluminum cover complimented with a 6150 steel diaphragm. These units are rated to hold 500 to 1200hp (depending on application).

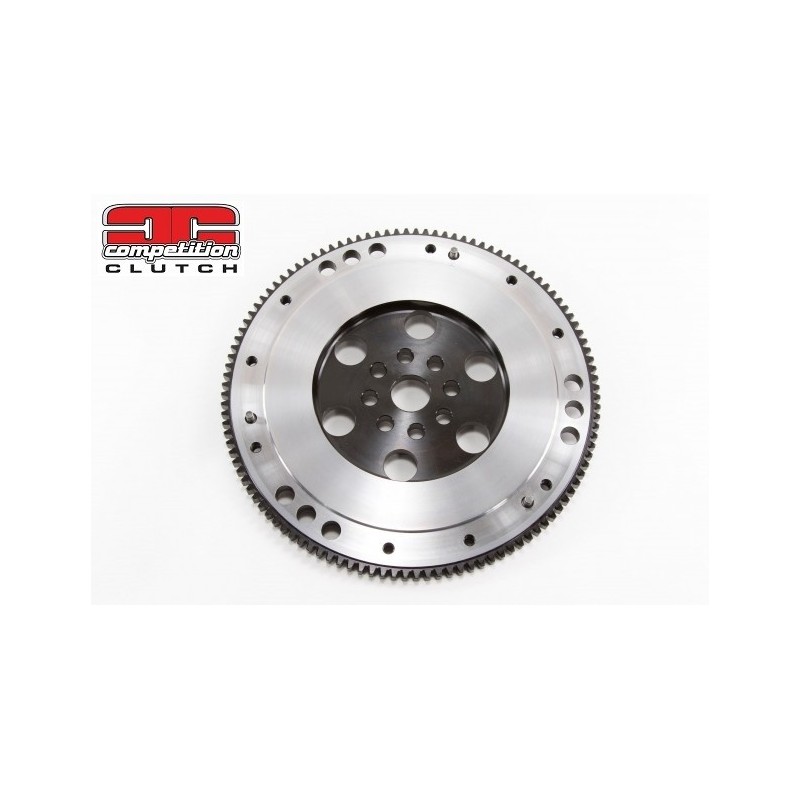

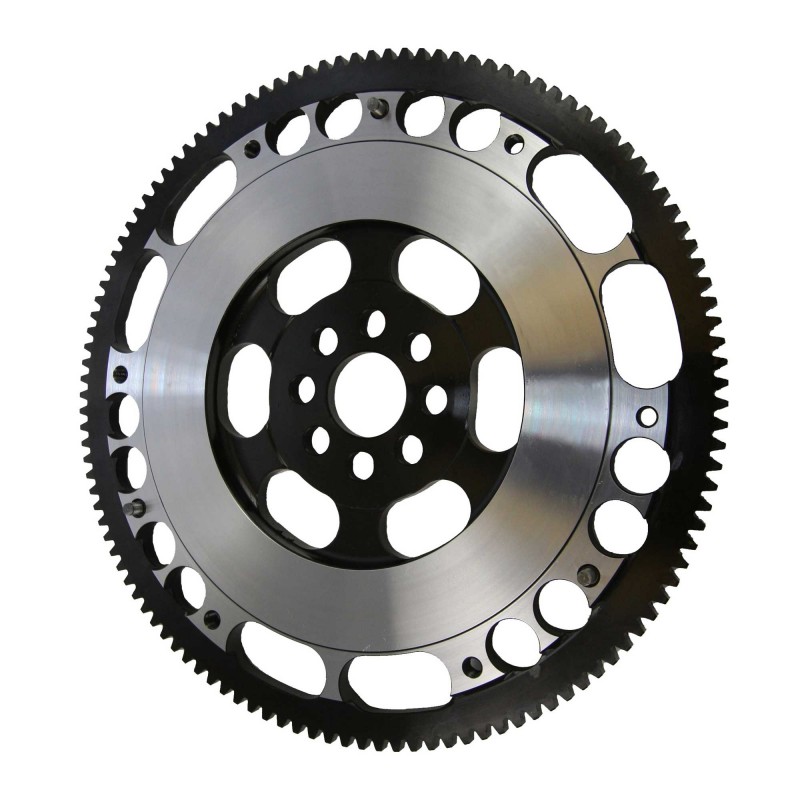

 Flywheels
Competition Clutch flywheels are made of 4140 forged steel and are a one-piece design. This helps significantly in reducing the chances of ring gear separation and friction surface warpage. All flywheels can be resurfaced. The correct flywheel step can be obtained in the CCI catalog or by calling us direct. Flywheel weights vary from 8lbs to 18lbs depending on application.

The lightweight steel flywheel (ST suffix) is recommended for naturally aspirated and/or street driven applications. This flywheel preserves low-end torque and driveability. Well-suited for Gravity, Stage 1 and Stage 2 clutch applications.

The ultra lightweight steel flywheel (STU suffix) is recommended for forced induction and/or track and rally racing applications. This flywheel is machined with less material to assist in quicker revving capabilities.

Well-suited for Stage 3 and up clutch applications. These flywheels will work with ALL performance and stock clutch assemblies. Not all applications have the ST and STU versions available. Please verify before ordering. All flywheels are SFI certified.
